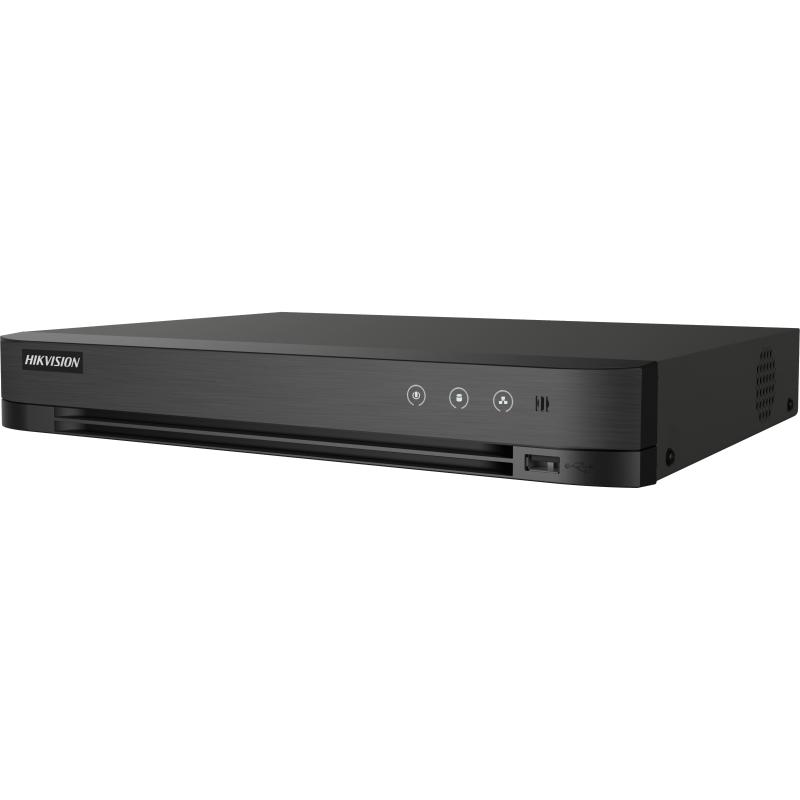

4ch 4K 1U H.265 AcuSense DVR

4ch 4K 1U H.265 AcuSense DVR
4channels and 1 HDD 1U AcuSense DVR
False alarm reduction by human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding abilty up to 8 MP @ 15 fps
5signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 8 network cameras can be connected.

لمزيد من المعلومات حول المنتج اضغط هنا

Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps

4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate
32 Kbps to 16 Mbps
Dual-stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection
32
Network Interface
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Wi-Fi
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each disk
Serial Interface
RS-485 (half-duplex)
USB Interface
Front panel: 1 × USB 2.0

Rear panel: 1 × USB 2.0

Alarm In/Out
N/A (optional to support)
General
Power Supply
12 VDC, 2 A
Consumption
≤ 10 W (without HDD)
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch)
≤ 1.8 kg (without HDD, 4.0 lb.)
