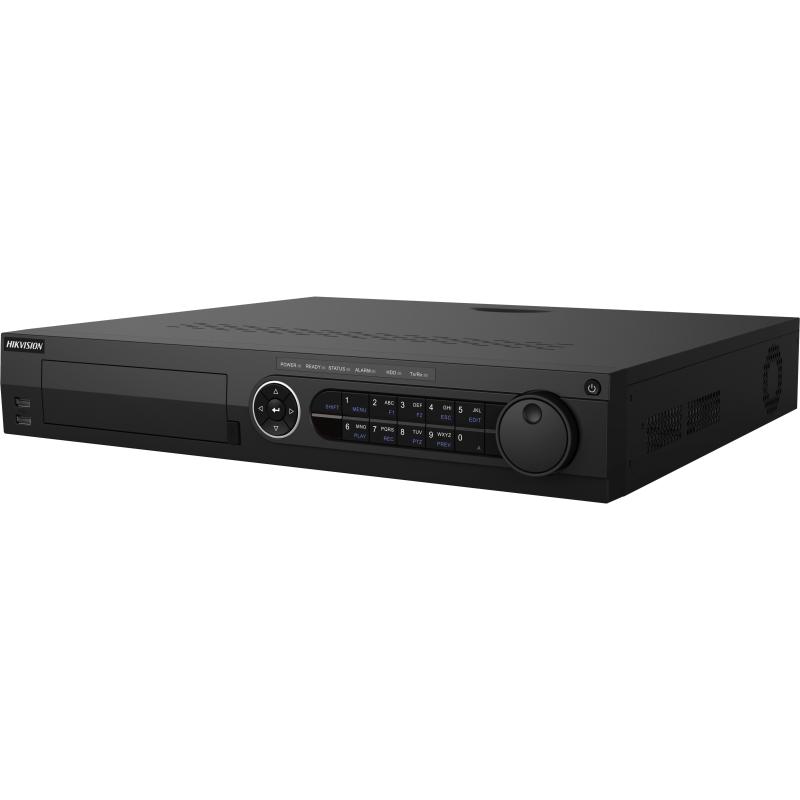

32ch 5MP 1.5U H.265 AcuSense DVR

32ch 5MP 1.5U H.265 AcuSense DVR
Deep learning-based perimeter protection
Deep learning-based motion detection 2.0 for all analog channels
Up to 32-ch analog camera inputs and 4 SATA interfaces
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
Up to 8 MP@8 fps/5 MP@12 fps encoding capability
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 64-ch network camera inputs
POS triggered recording and POS information overlay

لمزيد من المعلومات حول المنتج اضغط هنا

Perimeter Protection
Human/Vehicle Analysis
Up to 16-ch, for channel 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 only
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio
IP Video Input
32-ch (up to 64-ch);

Up to 12 MP resolution;

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
32-ch;

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
256Mbps
HDTVI Input
8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
AHD Input
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input
PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2 independent output
Audio Input
4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous Playback
16-ch
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate
32 Kbps to 10 Mbps
Dual-stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Remote Connection
128
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Network Interface
2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA
4 SATA interfaces
eSATA
Support
Capacity
Up to 12 TB capacity for each disk
Serial Interface
RS-232, RS-485 (full-duplex), Keyboard
Alarm In/Out
16/4
USB Interface
Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 55 W (without HDD)
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
440 × 399 × 72 mm (17.3 × 15.7 × 2.8 inch)
≤ 7 kg (without HDD, 15.4 lb.)
