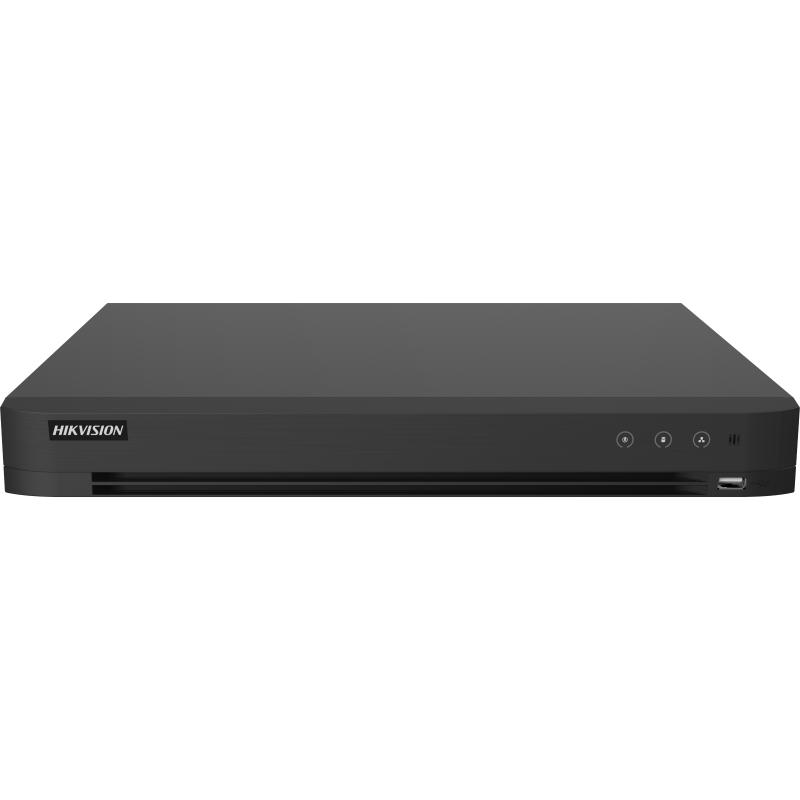

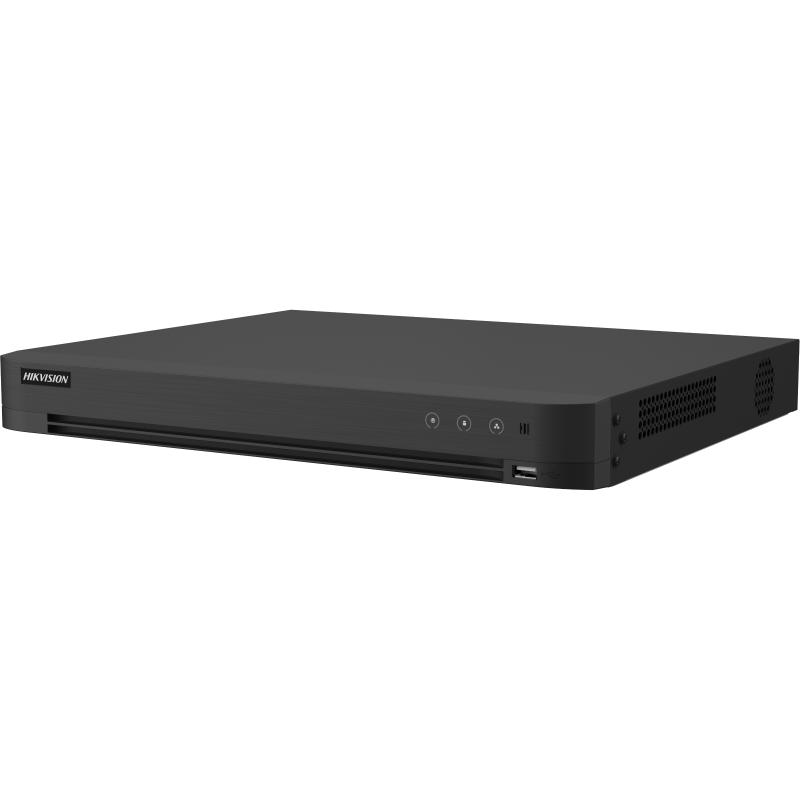

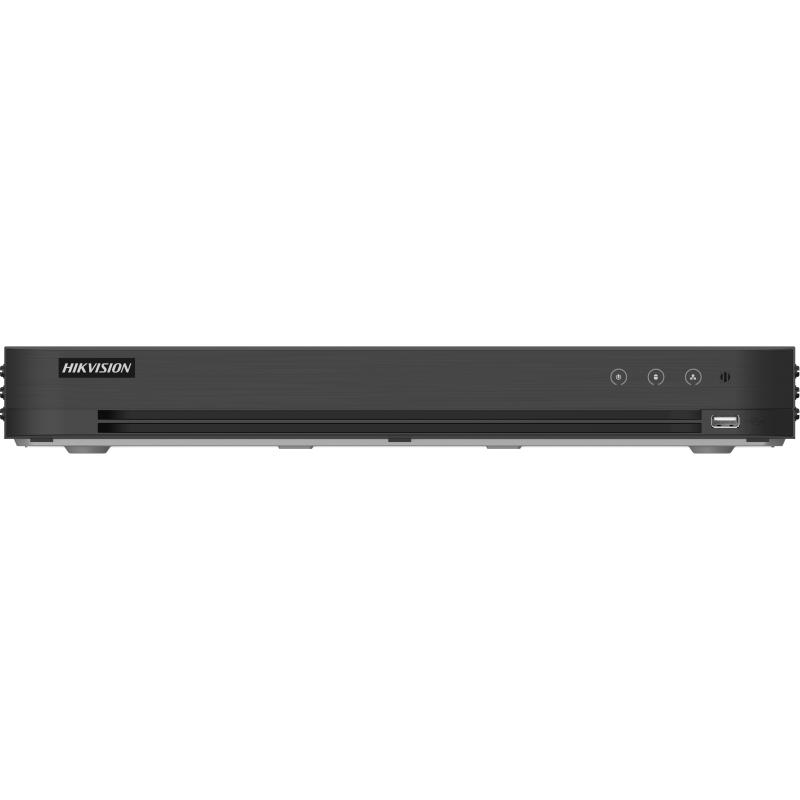

8ch 5 MP 1U H.265 AcuSense DVR

8ch 5 MP 1U H.265 AcuSense DVR
8channels and 2 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Encoding ability up to 4K/8MP@ 8fps; 3K/5MP @12fps
Up to 16 channels IP camera inputs, each channel up to 8MP
Up to 24*1080P@30fps decoding ability
5signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology

لمزيد من المعلومات حول المنتج اضغط هنا

Perimeter Protection
Human/Vehicle Analysis
Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture
Face picture detection, face picture search；

4-ch face picture capture

Target Recognition
Face Picture Library
Up to 16 face picture libraries;

HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

Face Picture Comparison
4-ch face picture comparison alarm (HD analog camera)
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

it can classify human and vehicle, and extremely reduce false alarms caused by objects

like leaves and lights;

Quick search by object or event type is supported;

Video and Audio
IP Video Input
8-ch (up to 16-ch), each up to 8MP
Analog Video Input
8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output
1-ch, 4K (3840 × 2160)/30Hz,

2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output

VGA Output
1-ch, 1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output

CVBS Input
PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous Playback
8-ch
HDTVI Input
8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input
5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input
8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Audio Input
1-ch(up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate
32 Kbps to 10 Mbps
Dual-stream
Support main stream or sub stream
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Decoding
Decoding Capability
up to 24-ch 1080P@30fps
Network
Total Bandwidth
256 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection
64
Network Interface
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA
2 SATA interface
Capacity
up to 12 TB capacity for each disk
Serial Interface
RS-485 (half-duplex)
USB Interface
Front panel: 1 × USB 2.0;

Rear panel: 2 × USB 3.0

Alarm In/Out
N/A (optional to support)
General
Power Supply
12 VDC, 3.3 A
Consumption
≤ 40 W
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
≤ 1.78 kg (3.9 lb)
