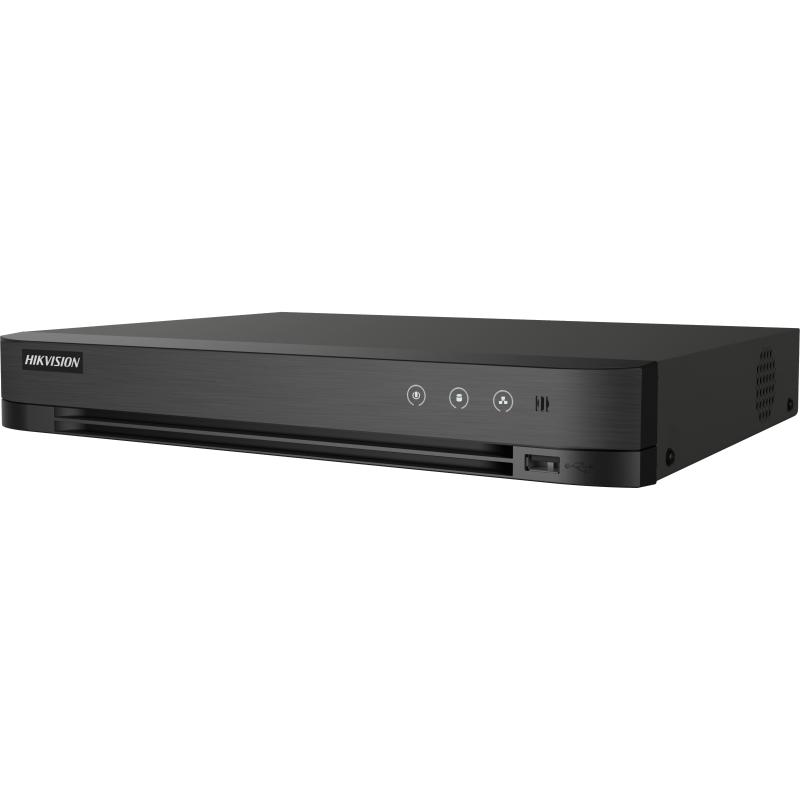

8ch 5 MP 1U H.265 AcuSense DVR

8ch 5 MP 1U H.265 AcuSense DVR
8channels and 1 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
Up to 16 channels IP camera inputs, each channel up to 8MP
Up to 24*1080P@30fps decoding ability
5signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology

لمزيد من المعلومات حول المنتج اضغط هنا

Perimeter Protection
Human/Vehicle Analysis
Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture
Face picture detection, face picture search；
4ch face picture capture
Target Recognition
Face Picture Library
Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Face Picture Comparison
4-ch face picture comparison alarm (HD analog camera)
Video and Audio
IP Video Input
8-ch (up to 16-ch), each up to 8MP
Analog Video Input
8ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
1ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
VGA Output
1ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
CVBS Input
PAL/NTSC
CVBS Output
1ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous Playback
8ch
HDTVI Input
8MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input
5MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input
8MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Output
1ch, RCA (Linear, 1 KΩ)
Audio Input
1ch(up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
Two-Way Audio
1ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate
32Kbps to 10 Mbps
Dual-stream
Support main stream or sub stream
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64Kbps
Decoding
Decoding Capability
up to 24-ch 1080P@30fps
Network
Total Bandwidth
256Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection
64
Network Interface
1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA
1SATA interface
Capacity
up to 12 TB capacity for each disk
Serial Interface
RS-485 (half-duplex)
USB Interface
Front panel: 1 × USB 2.0;
Rear panel: 2 × USB 3.0
Alarm In/Out
N/A (optional to support)
General
Power Supply
12VDC, 2 A
Consumption
≤24 W
Working Temperature
-10°C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
319×240×48mm (12.6 × 9.4 × 1.9 inch)
≤ 2 kg (4.4 lb)
