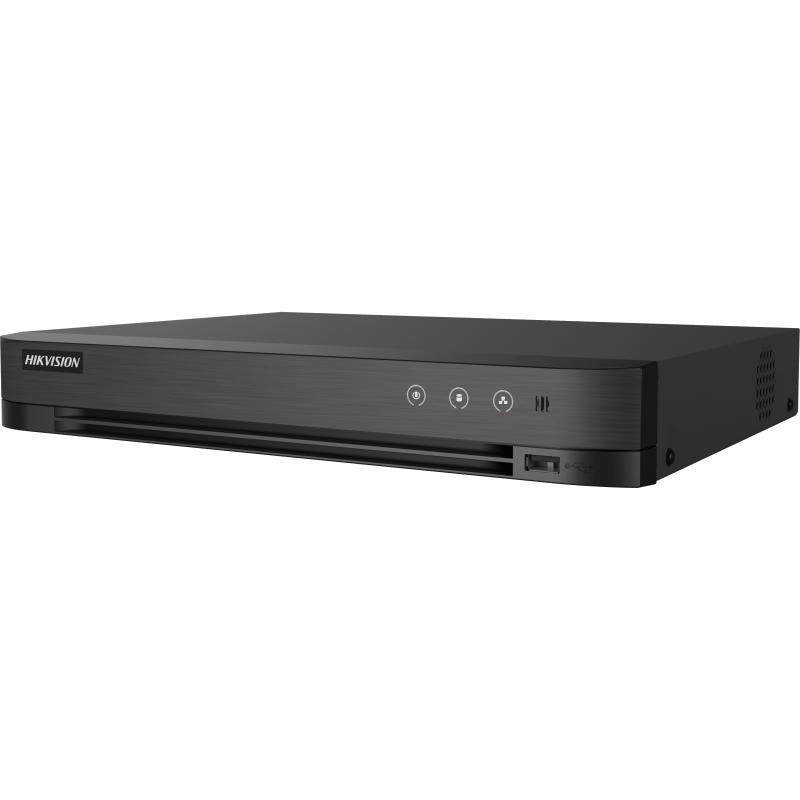

8ch 1080p 1U H.265 AcuSense DVR

8ch 1080p 1U H.265 AcuSense DVR
8channels and 1 HDD 1U AcuSense DVR
Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 4-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5M Lite @ 12 fps
5signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 12 -ch network cameras can be connected
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology

لمزيد من المعلومات حول المنتج اضغط هنا

Perimeter Protection
Human/Vehicle Analysis
Up to 4-ch

Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.

Target Recognition
Face Picture Library
Up to 16 face picture libraries
Face Picture Comparison (Captured from Camera)
Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio
IP Video Input
4-ch (up to 12-ch), Up to 6 MP resolution
Analog Video Input
8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input
3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input
5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input
3K(2880×1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps
CVBS Input
PAL/NTSC
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Input
8-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable;4-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable;1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ),8-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback
8-ch
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate
Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate
32 Kbps to 6 Mbps
Dual-stream
Support main stream or sub stream
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Remote Connection
64
Total Bandwidth
96 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
Serial Interface
RS-485 (half-duplex)
SATA
1 SATA interface, up to 10 TB capacity for each disk
Alarm In/Out
8/4;N/A (optional to support);4/1
USB Interface
Front panel: 1 × USB 2.0;

Rear panel: 1 × USB 2.0

General
Power Supply
12 VDC, 1.5 A
Consumption
≤ 18 W (without HDD)
Working Temperature
-10 °C to + 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
≤ 1.78 kg (3.9 lb) (without HDD)
